GTC-1
Category:
Keyword:
Carbon nanotubes, Nanocomposites, New energy technology
Detailed introduction
图文详情
| Exterior | CNT diameter distribution （nm） |
Carbon nanotube length （μm） |
Purity （%） |
Non-carbon impurity content （%） |
Metal content（ppm） | Specific surface area （㎡/g） |
Moisture （ppm） |
|||||||||||||
| Fe | Co | Ni | ||||||||||||||||||
| GTC-1 | Black powder | 10~20 | ＜15 | Original powder | Pickling | High purity | Original powder | Pickling | High purity | Original powder | Pickling | High purity | Original powder | Pickling | High purity | Original powder | Pickling | High purity | 120~180 | ＜2000 |
| ≥ 98 |
≥ 99.5 |
≥ 99.9 |
≤ 2 |
≤0.5 | ≤ 0.1 |
<1000 | 100 | <10 | <5000 | <500 | <20 | <500 | <100 | <5 | ||||||

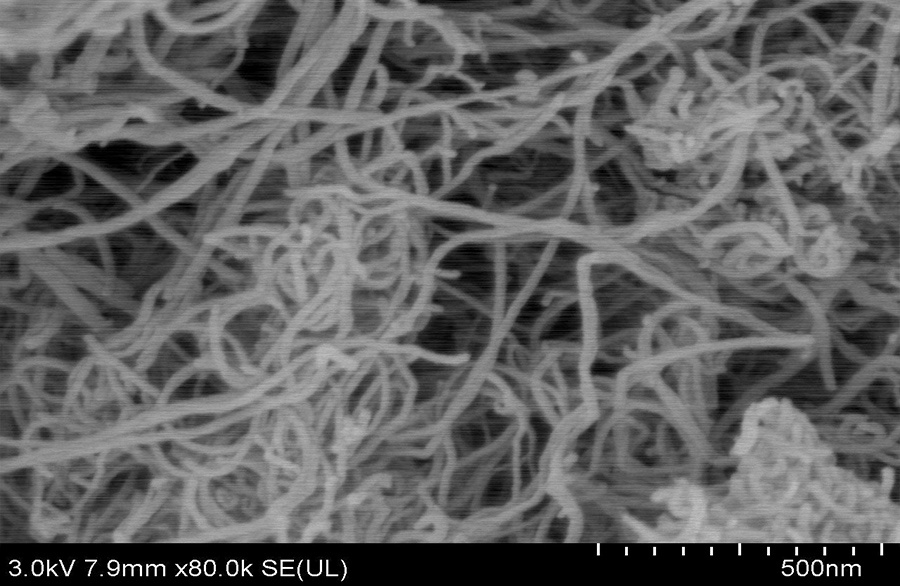

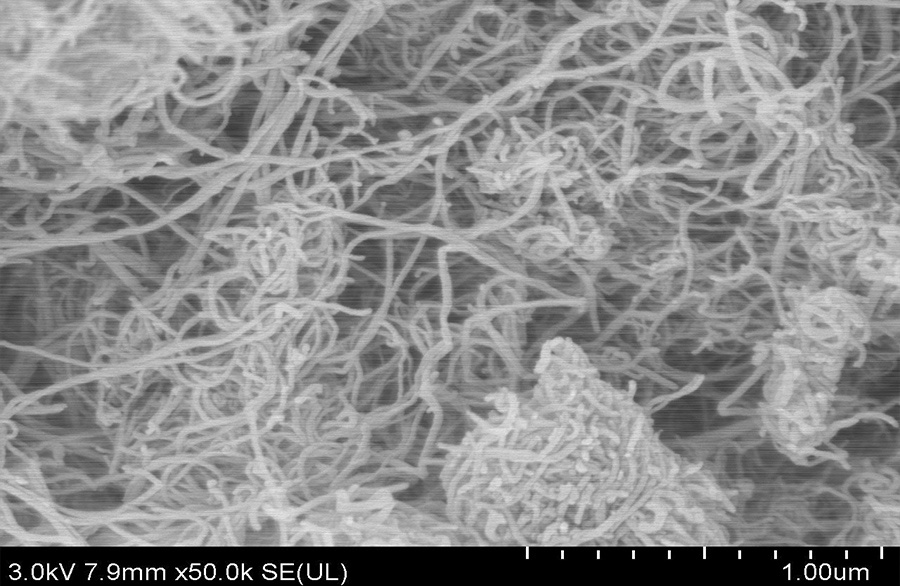

| Detection Method | Visually | After sample preparation, the samples were sent for SEM and TEM inspection. | High temperature calcination weight loss method | ICP-OES detection after sample preparation | JW-BK122W Static Nitrogen Adsorber | Moisture meter | ||||||||||||||
Advantage
GTC-1：Easy to disperse, low cobalt ion reducibility, and high safety.
